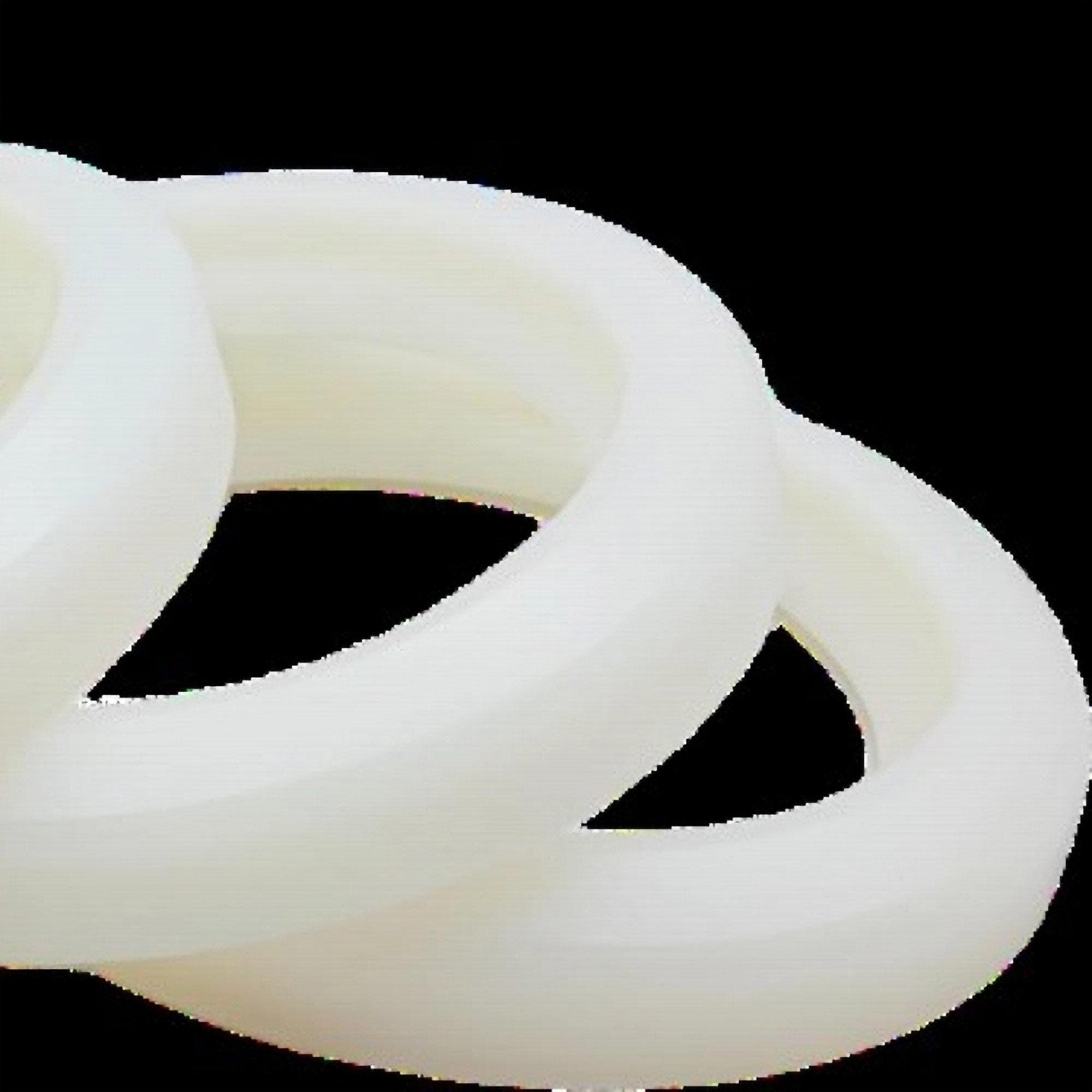

High-Performance Valve Insert-U205 – Engineered for Medium & High-Pressure Applications

Overview: Our high-performance Valve Insert is expertly designed for demanding oilfield operations where medium to high-pressure conditions prevail. With a recommended use pressure of less than 110MPa, it delivers robust, reliable performance across various challenging environments.

Key Specifications:

• Recommended Use Pressure: < 110MPa

• Support Base Type: Compatible with ceramic grains and/or quartz sand

• Application Blocks: Optimized for use in regions such as Sichuan (with high sand content), Shanxi, Xinjiang, Guizhou, Daqing, Songwon, North China, East China, and other medium to high-pressure blocks where the work surface is less prone to sand adhesion

• Service Life:

  • 70–90MPa: Over 42 hours

  • 90–110MPa: Over 36 hours

• Fluid Compatibility: Suitable for use with guanidine gel, oil-based mud and/or water-based mud, brine, bio-glue, liquid CO₂/N₂, and other innovative sand-carrying fluids

• Acid Tolerance: Withstands acidified fracturing fluids with acid concentrations below 25%

• Service Temperature: Operates reliably in a temperature range from -45°C to 110°C

Place your order, and we will provide you with a customized price based on your order volume.
